| Place of Origin: | China |
| Brand Name: | Bitmain |
| Certification: | FCC |
| Model Number: | APW3++ |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $30-50 Per Piece |
| Packaging Details: | carton ,wooden box |
| Delivery Time: | 2-3days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, PAYPAL, APPLE PAY, GOOGLE PAY, GC REAL TIME BANK TRANSFER, USDT |
| Supply Ability: | 1000 pcs per week |
| Output Power: | 1600W | Model Number: | APW3++ |
|---|---|---|---|
| Input Voltage: | 100-140 /200-240V AC | Output Voltage: | 12.15V |
| Output Frequency: | 47-63HZ | Application: | Antminer PSU |
| Dimension: | 220mm*108mm*62mm | Material: | Aluminium |
| Package: | Carton | Weight: | 1.5KG |
| High Light: | Bitmain Sol/S 42ksl Antminer Z9,Sol/S Bitmain Antminer 42ksl Z9,Sol/S Bitmain Antminer Z9 42ksl |
||

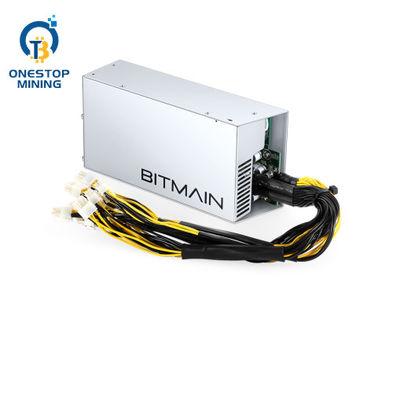

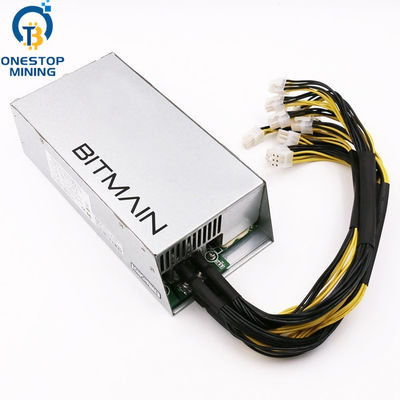

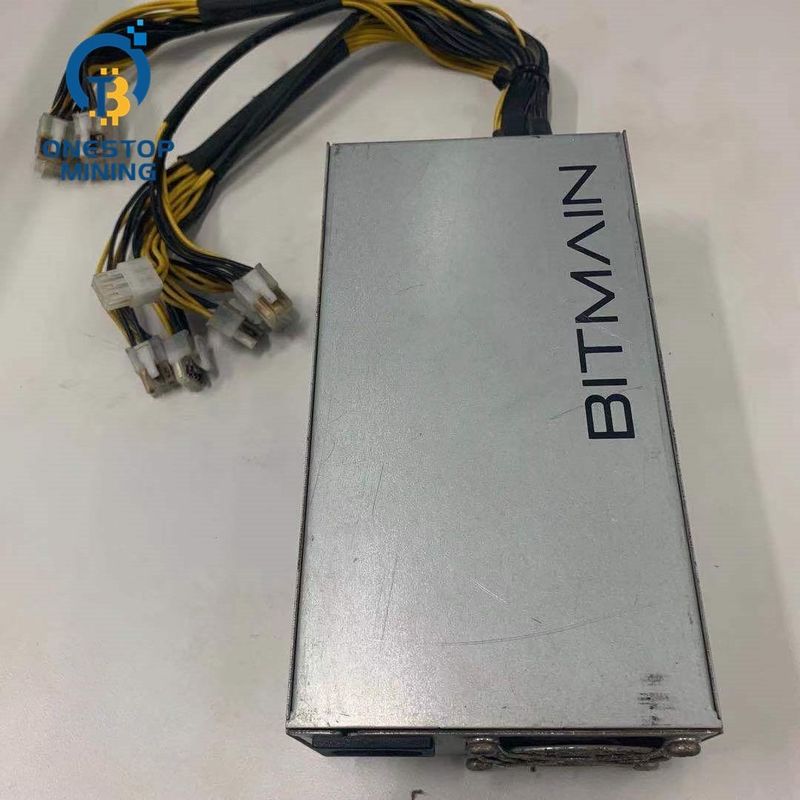

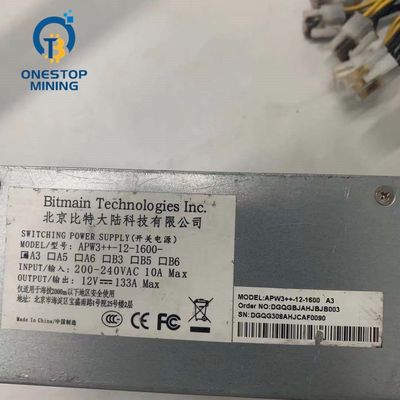

Used APW3++ Bitmain PSU for Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1
| Output | DC Voltage | 12.15V | |
| Rated Current | 133A | ||
| (220V input) | |||
| Rated Current | 100A | ||
| (110V input) | |||
| Rated Power | 1600W | ||
| (220V input) | |||
| Rated Power | 1200W | ||
| (110V input) | |||
| Ripple & Noise | <1% | ||
| Voltage Regulation | <2% | ||
| Source Regulation | <1% | ||
| Load Regulation | <1% | ||
| Setup, Rise Time | <2S | ||
| Power off Protection Trip Time | >9mS | ||
| Interface Type | 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors) | ||
| Noise Level | <43DB | ||
| Input | Voltage Range | 100-240V AC | |
| Starting Voltage | 95-105V AC | ||
| Frequency Range | 47-63Hz | ||
| Power Factor | >0.95 (full load) | ||
| Leakage Current | <1.5mA (220V 50Hz) | ||
| Protection | Low-voltage Input | 80-89V AC | |
| Output Short Circuit | Yes | ||
| Output Overcurrent | 134-185A max. | ||
| Overheat Protection | Yes | ||
| Environment Conditions | Operating Temperature | -20°C - 50°C | |
| Operating Humidity | 20% - 90% relative humidity (non-condensing) | ||
| Structure | Dimensions | 220mm*108mm*62mm | |
| Cooling | Fan | Forced-air cooling | |
