| Place of Origin: | China |
| Brand Name: | Bitmain |
| Certification: | FCC |
| Model Number: | APW7 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $45-65 Per Piece |
| Packaging Details: | carton ,wooden box |
| Delivery Time: | 2-3days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, PAYPAL, APPLE PAY, GOOGLE PAY, GC REAL TIME BANK TRANSFER, USDT |
| Supply Ability: | 1000 pcs per week |
| Output Power: | 1800W | Model Number: | APW7 |
|---|---|---|---|
| Input Voltage: | 100-140 /200-240V AC | Output Voltage: | 12V |
| Output Current: | 67A/150A | Output Frequency: | 50/60Hz |
| Application: | Antminer PSU | Dimension: | 220mm*108mm*62mm |
| Material: | Aluminium | Package: | Carton |
| Weight: | 1.5KG | ||
| High Light: | antminer s15 psu,fcc ce antminer l3+ a10 s19j,antminer s19 pro power supply |
||

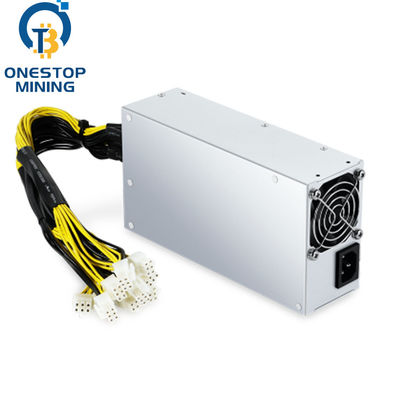

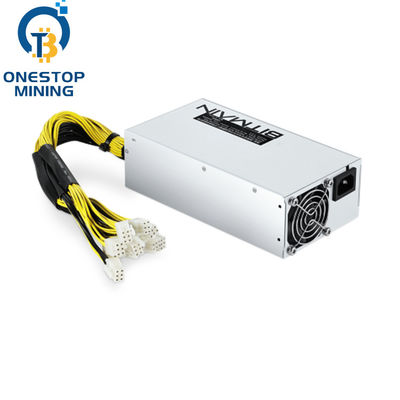

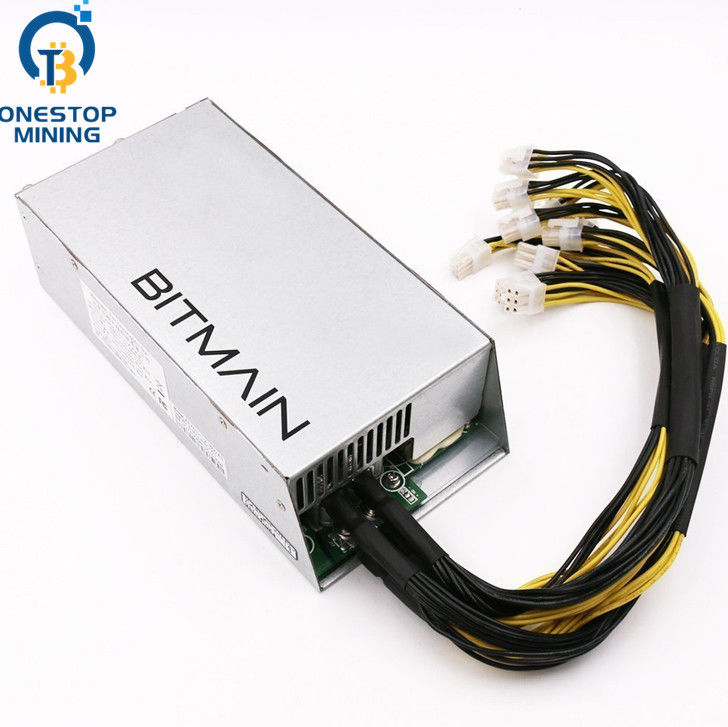

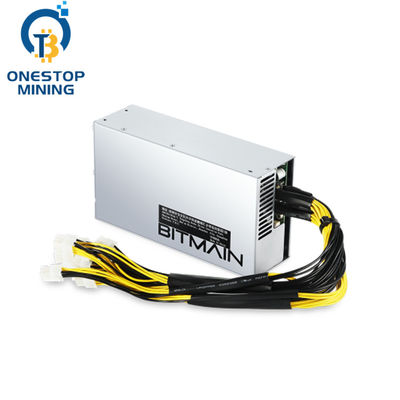

New/Used APW7 Bitmain PSU for Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1
|
Output
|
DC Voltage
|
12.0V
|
|
Rated Current(200-240V input)
|
150A
|
|
|
Rated Power (200-240V input)
|
1800W
|
|
|
Rated Current(100-140V input)
|
67A
|
|
|
Rated Power (100-140V input)
|
800W
|
|
|
Ripple & Noise
|
<1%
|
|
|
Voltage Accuracy
|
12.0-12.5V
|
|
|
Line Regulation
|
<1%
|
|
|
Load Regulation
|
<1%
|
|
|
Setup Time
|
<2S
|
|
|
Short Circuit Protection
|
>10mS
|
|
|
Input
|
Voltage Range
|
100-140 /200-240V AC
|
|
Frequency Range
|
50/60Hz
|
|
|
Power Factor
|
>0.99(full load)
|
|
|
Leakage Current
|
<1.5mA(220V 50Hz)
|
|
|
Protection
|
Low-voltage Input
|
80-89V AC
|
|
Output Short Circuit
|
Yes
|
|
|
Output Overcurrent
|
150-200A
|
|
|
Overheat Protection
|
Yes
|
|
|
Environment
|
Operating Temperature
|
-20-60℃
|
|
Operating Humidity
|
20%-90%RH(non-‐condensing)
|
|
|
Altitude
|
< 2000m
|
|
|
Structure
|
Dimensions
|
206*110*62mm
|
|
Weight
|
2.0kg
|
|
|
|
Cooling System
|
forced-‐air cooling
|
|
|
Noise
|
43DB
|
