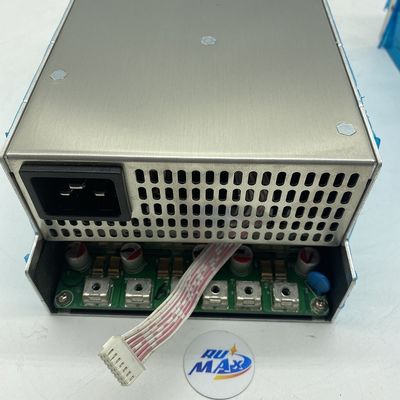

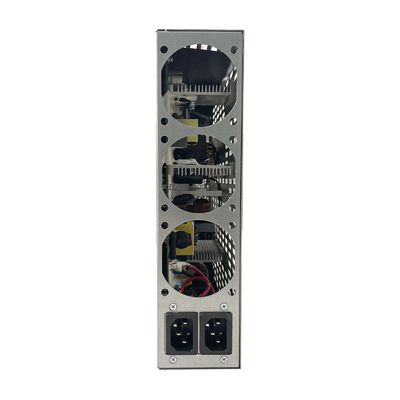

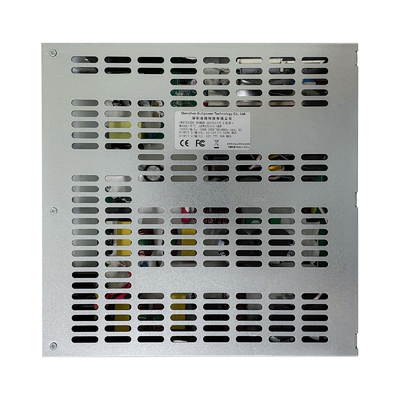

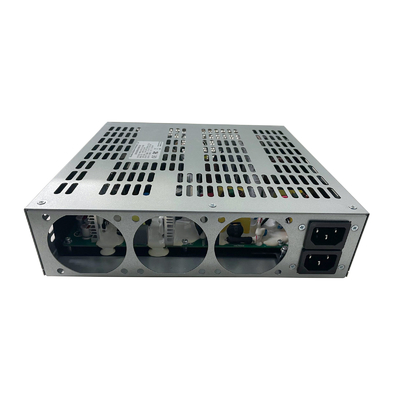

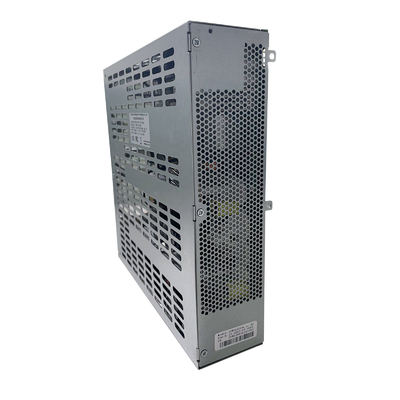

6KW Power Supply for Oil-Cooling OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series

6KW Power Supply for Oil-Cooling OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series

  • 6KW Power Supply for Oil-Cooling OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series
  • 6KW Power Supply for Oil-Cooling OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series
  • 6KW Power Supply for Oil-Cooling OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series
  • 6KW Power Supply for Oil-Cooling OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series
  • 6KW Power Supply for Oil-Cooling OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series
6KW Power Supply for Oil-Cooling OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series
Product Details:
Place of Origin: China
Brand Name: GULLPOWER
Certification: CE, FCC
Model Number: GPW121215D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200-300
Packaging Details: well packed with carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000
Contact Now
Detailed Product Description
Place Of Origin:: China Model Number:: GPW121215D
Max Output Power: 6KW Input Voltage Range: 200V—305Vac
Output Voltage: 12V-15V Operating Temperature: -20~+45℃
Store Temperature: -40~+85℃ Altitude: ≤2000m
Size: 254*249*63mm(No Fans, No Top Cover) Weight: 3.6Kg
High Light:

P21D Asic Miner Parts Power Supply Whatsminer M10

,

P21D Asic Miner Power Supply Whatsminer M10

,

Asic Miner Parts Power Supply Whatsminer M10 P21D

Introduction



GPW121215D is born for immersion cooling miners, it is a dual voltage input, high efficiency, high power factor power supply.

The PSU has output short circuit protection, output over current protection, output over voltage protection, over temperature protection. The whole power supply is designed in strict accordance with safety regulations, in line with information technology equipment safety standards, product design in line with CE, FCC certification requirements.



Package



1. packing



The product name, model number, manufacturer's identification, inspection certificate from the manufacturer's quality department, manufacturing date, etc.Attached list is found in the packing case.



2. transportation



Suitable for vehicle, ship, aircraft transport, transport should be awning, sunscreen, civilized loading and unloading.



3. storage



Products should be stored in the packing box when not in use. The ambient temperature of the warehouse is -40℃ -- +85℃, and the relative humidity is 0% -- 95%. Harmful gases, inflammable and explosive products and corrosive chemicals are not allowed in the warehouse, and there is no strong mechanical vibration, impact and strong magnetic field effect.It should be at least 50cm away from the wall, heat source, window or air inlet, and the storage period under these conditions is generally 2 years. After 2 years, it should be re-inspected.



Specifications



Max output Power: 6000W

Input voltage range: 200V—305Vac

Operating Temperature: -20-+45℃

Store Temperature: -40―+85℃

Humidity: 0-90%(non-­condensing)

Altitude: ≤2000m

Cooling Method: immersion cooling

Normal voltage range: 220-277Vac

Input Voltage range: 200-305Vac

Inrush current (cold start): ≤50A 220Vac, 25℃

Max input ac current: 30A, full load condition

Power Factor: ≥0.98 (full load condition)

Frequency range: 47—63Hz

For OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series


6KW Power Supply for Oil-Cooling OverClocking Bitmain S19,S19Pro,S19J,S19JPro,S19A series 0
